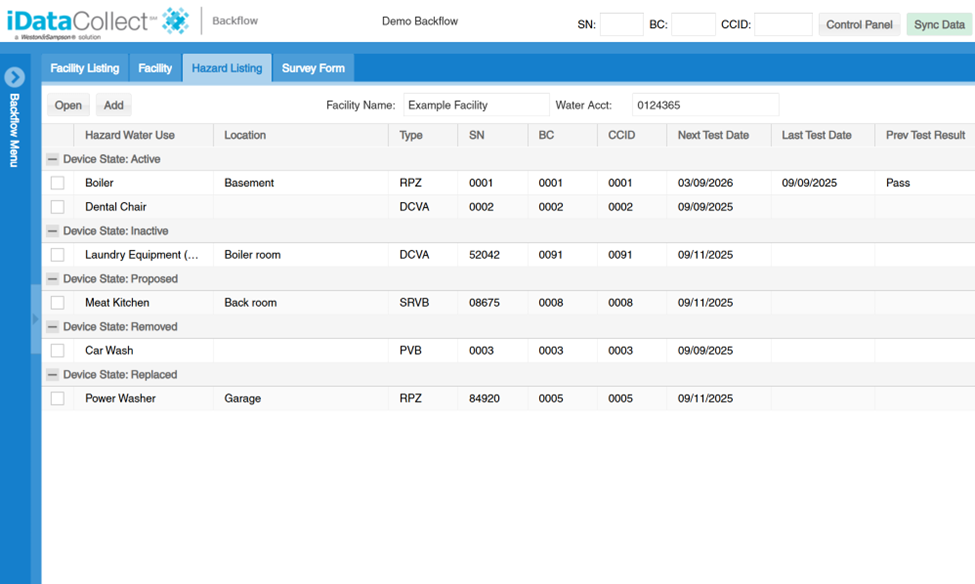

Hazard Listing Screen

The Hazard Listing screen displays all hazard device combinations for a given facility, regardless of the Device State. From this screen you are able to add a new hazard or device, as well as open existing devices. The hazard device combinations listed on this screen are automatically grouped by Device State and can be set to ‘Active’, ‘Inactive’, ‘Proposed’, ‘Removed’, or ‘Replaced’.

Each hazard and device combination are listed on this screen. As a hazard can have more than 1 device, a hazard may be listed multiple times. The hazard's associated devices can be in any of the 5 states. Devices can be added from the Hazard Screen once a hazard has been opened.

Above the grid there are fields that denote “Facility Name” and facility “Water Acct”; These fields are not editable from this screen but can be edited on the Facility screen.

Open a Hazard Device

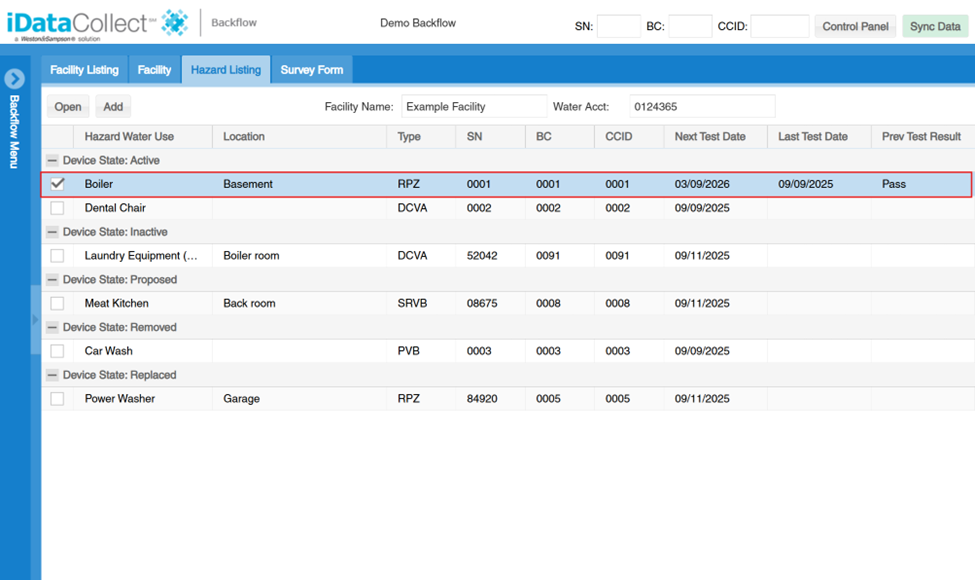

1. Select the device you wish to open by clicking on the row.

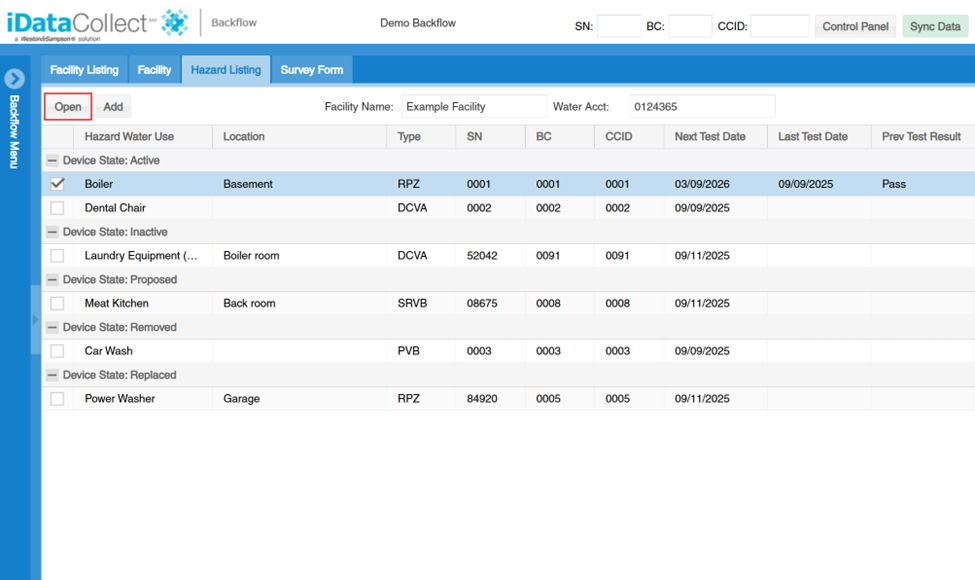

2. Select the “Open” button from the top of the grid.

3. This will open the Hazard Screen, which displays all information related to a hazard and all devices associated with that hazard. If the device is active the associated test form will also appear in the top row of options.

Add a Hazard Device

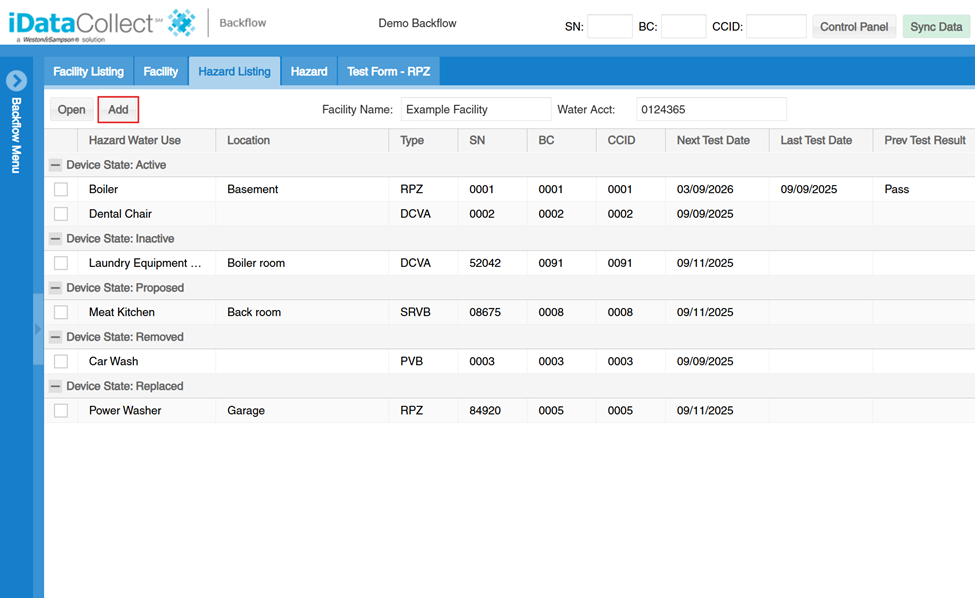

1. Select the “Add” button at the top left of the grid.

2. A dialogue box will appear with a list of existing hazards. Each hazard should represent a physical hazard at the facility. From this menu you can either add a new hazard OR choose an existing hazard

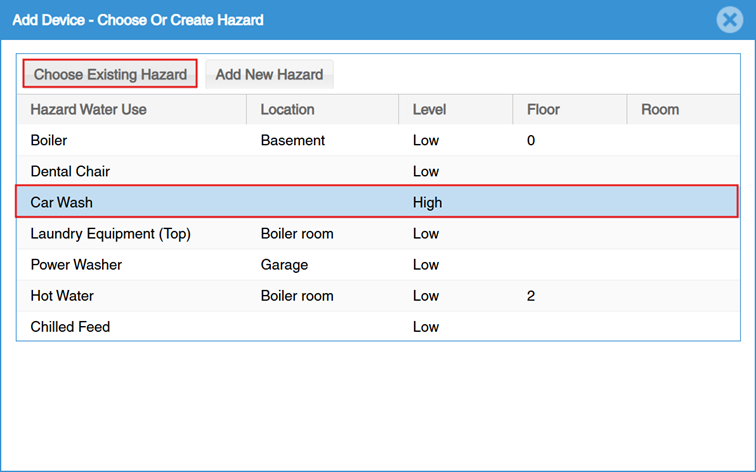

   1. To choose an existing hazard, select a hazard from the list in the pop-up window and click “Choose Existing Hazard”

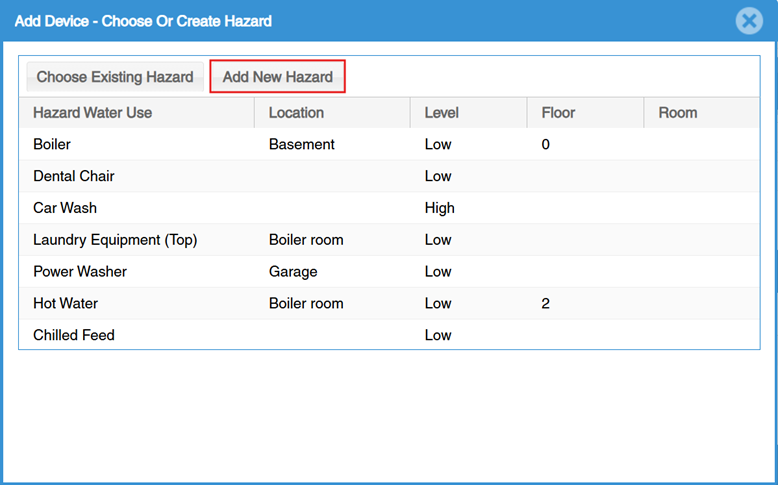

   2. To add a new hazard, click the “Add New Hazard” button

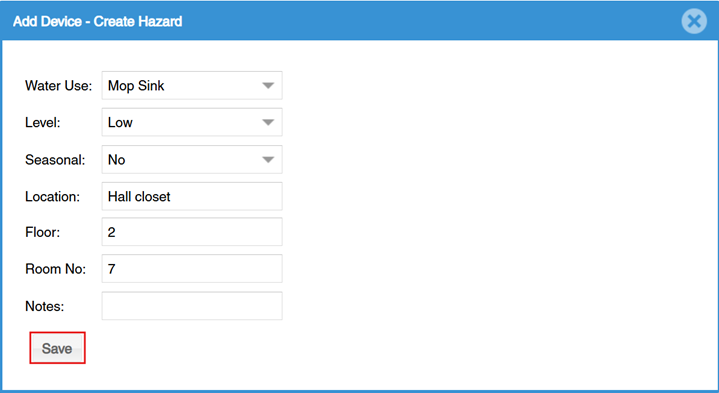

   3. Input hazard information and details in the form and select “Save” from the bottom of the dialogue box. Hazard details can be edited after the hazard and device are created.

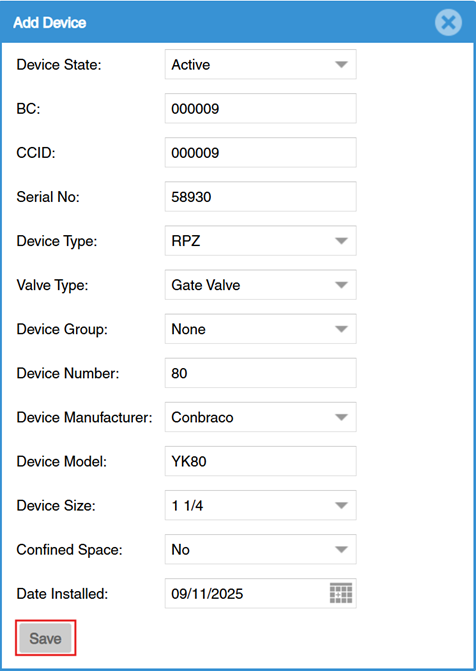

3. The ‘Add Device’ dialogue box will appear. Fill out all relevant device information and select the ‘Save’ button from the bottom of the window.


Add Columns

Much like other grids within the Backflow software, the Hazard Listing Grid has options to sort, filter, and add optional columns. These additional columns can be seen by clicking on the right side of any column header.

Default Column Options:
Hazard Water Use, Location, Type, SN, BC, CCID, Next Test Date, Last Test Date, Previous Test Result

Additional Column Options:
Manufacturer, Device Number, Group
